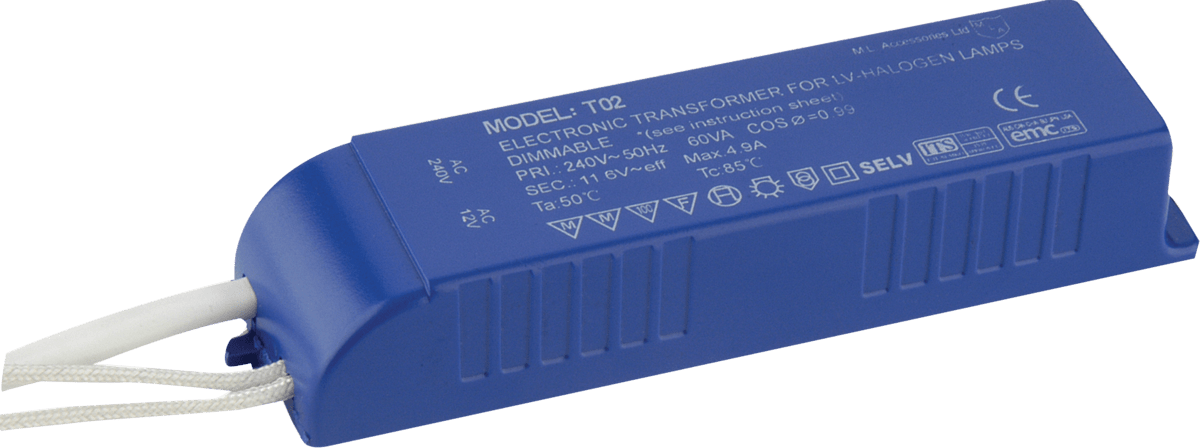

12v 20-60W Dimmable AC Transformer
£10.00
Taxes included.
Shipping calculated at checkout.
Pickup available at Warehouse
Usually ready in 24 hours
Reliable shipping
Flexible returns
Details
| DESCRIPTION | 12V 20-60W Transformer for ELV Lighting |
|---|---|
| NET WEIGHT (KG) | 0.082 |
| DIMENSIONS (MM) | Length - 120 Height - 23 Width - 30 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SECONDARY VOLTAGE | 12V |
| CABLE LENGTH (M) | 0.2 |
| CABLE TYPE | H03VVF 2 x 0.75mm2 |
| DRIVER | MAX. OUTPUT - 20 - 60VAW OUTPUT VOLTAGE - 12V ACV POWER FACTOR - 0.99 EFFICIENCY FULL LOAD - 94.9 ISOLATION - SELV AMBIENT TEMPERATURE (Ta) - 50°C CASE TEMPERATURE (Tc) - 85°C |
Materials + Care
We prioritize quality in selecting the materials for our items, choosing premium fabrics and finishings that ensure durability, comfort, and timeless appeal.
An installation instruction leaflet will be provided in the box with your product
